X Ray Baggage Scanner Security Inspection Machine for Airport/Train Station At6550d

Model NO.: AT6550D
Alarm Form: Display Alarm
Place of Origin: Shenzhen, China
Brand Name: Safeway System
Trademark: Safeway System
Transport Package: Wooden
Specification: CE, SGS, ISO
Origin: China
HS Code: 9022191090
Model NO.: AT6550D
Alarm Form: Display Alarm
Place of Origin: Shenzhen, China
Brand Name: Safeway System
Trademark: Safeway System
Transport Package: Wooden
Specification: CE, SGS, ISO
Origin: China
HS Code: 9022191090
X Ray Baggage Scanner Security Inspection Machine for Airport/Train Station At6550dX Ray Baggage Scanner Security Inspection Machine for Airport/Train Station At6550d
DUAL VIEW, DUAL ENERGY, TWO GENERATORS
Model: AT-6550D

Advantages:

1. No mater the threat is in vertical, horizontal or oblique angle; at least one view of the three can show you full image.
2. Wonderful scanning speed---one triple view X Ray device and take over the jobs of 2.5 single view X Ray device.
3. Cost effective compared with CT X Ray Device.

Product highlights

* Three generator, 3D perspective
* Automatic built in test and self diagnosis
* Secure access Key
* Uninterruptable power supply (UPS)
* Threat alert and material classification
* Auto archiving
* Network-Ready
* Energy saving design
* One key turn off
* Drugs and explosives inspection
* Indication of the date and time
* baggage counter

Physical Specifications
Unit weight (kgs) 560
Unit size (mm) 2055(L)*1200(W)*1500(H)
after packed in wooden pallet -
Gross weight (kgs) 750
Packing size #1: 237*155*166cm
  #2: 86*87*142cm

General Specifications
Tunnel size(mm) 660(L)*502(W)
Conveyor Speed(m/s) 0.22
Conveyor height(mm)  670
Conveyor Max Load(kgs) 150
X ray dose per each inspection 2.5 μGy
X ray leakage  <0.5 μGy / h
Penetration 40mm steel
Wire Resolution dia 0.0787mm copper wire (AWG40)
Penetration Resolution dia 0.16mm copper wire (AWG34) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm
Spatial resolution: dia1.0mm,Vertical: dia1.0mm
Power Consumption max. 1KW
Noise < 58 dB
Film Safety Guarantee ASA/ISO1600 Film

X-ray Generator (single)
Anode Voltage 140-160 KV
Anode power 0.8mA
Generate angle 80 degree upward
Generate direct from bottom to top & side fan shape
Cooling / Duty Cycle Oil Cooling /100%
Brand self made or spellman

Image System
X-ray Sensor L-Shaped Photodiode Array (multi-energetic)  , 12bit Deep
Image Display High resolution of 1024 * 1280 pixel; Image Grey Level: 4096
Image Enhancement 1-64times enlargement continuity, Color/BW, negative, high/low
penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall  All preceding images recallable, retrieval
Explosives & Narcotics Detection Explosives & narcotics alarm and highlight according to atomic number signature
High Density Region Alarm Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive Up to 200,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network Applications Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .
Images process 24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags

Operating Environment
Operation temperature/Humidity  0ºC-45ºC / 5%-95%(non-condensing)
Storage Temperature/Humidity  -40ºCto 70ºC / 5%-95%(non-condensing)
Operation Power  220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
UPS  15mins, 30mins, 60mins etc, optional

Computer and other
Monitor High Resolution Color, LCD Accord, 17inch
Hard Disk SEAGATE 500G 3.5"
CPU G1610 2.6G
Storage 2GB 1600MHz DDR3 Innodisk
Main board H61 SYM76993VGGA

Compliance
International  * ISO19001 ; ISO14001 ; OHSMS18001 ;
* CE
* USA FDA
* Maximum X-ray leakage of less than 5 μSv/h(0.5mR/h) measured at 5cm from any external surface. (European standard - less than 1 μSv/h(0.1mR/h) measured at 10cm from any external surface)
National (China) * Health Inspection Report
* Computer Software Copyright Registration Certificate
* Software Product Registration Certificate
* Radiation Safety Certificate from Ministry of Public Security
* Quality Certification from Safety and Police Electronic Products Quality Inspection Center
* Design pantent certification: Patent No. : 201020700245.2 ; Patent No. : 201020700245.8 ; Patent No. : 201020700256.0

X Ray Baggage Scanner Security Inspection Machine for Airport/Train Station At6550d


X Ray Baggage Scanner Security Inspection Machine for Airport/Train Station At6550d
X Ray Baggage Scanner Security Inspection Machine for Airport/Train Station At6550d

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

                             X-Ray Baggage Scanner
                                                       Product Index
NO.    Model                                      Remarks
Tunnel Size Generator View Brands of Generator
1 AT 5030C 500*300mme single one self made
2 AT 6040B 600*400mm single one Spellman 160 Kv
3 AT 6550B 650*500mm single one Spellman 160 Kv
4 AT 8065B 800*650mm single one Spellman 160 Kv
5 AT 10080B 1000*800mm single one Spellman 160 Kv
6 AT 10080D 1000*800mm two two self made
7 AT 10080T 1000*800mm three three view / 3D self made
8 AT 100100B 1000*1000mm single one Spellman 160 Kv
9 AT 100150B 1000*1500mm single one Spellman 200 Kv
10 AT 150180B 1500*1800mm single one Spellman 200 Kv
11 AT 2300 Portable and mobile x-ray scanner
Available and customizable models
NO. Model Remarks
Tunnel Size Generator View Brands of Generator
1 AT 100100D 1000*1000mm two two self made
2 AT 100100T 1000*1000mm three three view / 3D self made
3 AT 150100B 1500*1000mm single one Spellman 160 Kv
4 AT 100150D 1000*1500mm two two self made
5 AT 150180D 1500*1800mm two two self made
X Ray Baggage Scanner Security Inspection Machine for Airport/Train Station At6550dX Ray Baggage Scanner Security Inspection Machine for Airport/Train Station At6550d
DUAL VIEW, DUAL ENERGY, TWO GENERATORS
Model: AT-6550D

Advantages:

1. No mater the threat is in vertical, horizontal or oblique angle; at least one view of the three can show you full image.
2. Wonderful scanning speed---one triple view X Ray device and take over the jobs of 2.5 single view X Ray device.
3. Cost effective compared with CT X Ray Device.

Product highlights

* Three generator, 3D perspective
* Automatic built in test and self diagnosis
* Secure access Key
* Uninterruptable power supply (UPS)
* Threat alert and material classification
* Auto archiving
* Network-Ready
* Energy saving design
* One key turn off
* Drugs and explosives inspection
* Indication of the date and time
* baggage counter

Physical Specifications
Unit weight (kgs) 560
Unit size (mm) 2055(L)*1200(W)*1500(H)
after packed in wooden pallet -
Gross weight (kgs) 750
Packing size #1: 237*155*166cm
  #2: 86*87*142cm

General Specifications
Tunnel size(mm) 660(L)*502(W)
Conveyor Speed(m/s) 0.22
Conveyor height(mm)  670
Conveyor Max Load(kgs) 150
X ray dose per each inspection 2.5 μGy
X ray leakage  <0.5 μGy / h
Penetration 40mm steel
Wire Resolution dia 0.0787mm copper wire (AWG40)
Penetration Resolution dia 0.16mm copper wire (AWG34) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm
Spatial resolution: dia1.0mm,Vertical: dia1.0mm
Power Consumption max. 1KW
Noise < 58 dB
Film Safety Guarantee ASA/ISO1600 Film

X-ray Generator (single)
Anode Voltage 140-160 KV
Anode power 0.8mA
Generate angle 80 degree upward
Generate direct from bottom to top & side fan shape
Cooling / Duty Cycle Oil Cooling /100%
Brand self made or spellman

Image System
X-ray Sensor L-Shaped Photodiode Array (multi-energetic)  , 12bit Deep
Image Display High resolution of 1024 * 1280 pixel; Image Grey Level: 4096
Image Enhancement 1-64times enlargement continuity, Color/BW, negative, high/low
penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall  All preceding images recallable, retrieval
Explosives & Narcotics Detection Explosives & narcotics alarm and highlight according to atomic number signature
High Density Region Alarm Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive Up to 200,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network Applications Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .
Images process 24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags

Operating Environment
Operation temperature/Humidity  0ºC-45ºC / 5%-95%(non-condensing)
Storage Temperature/Humidity  -40ºCto 70ºC / 5%-95%(non-condensing)
Operation Power  220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
UPS  15mins, 30mins, 60mins etc, optional

Computer and other
Monitor High Resolution Color, LCD Accord, 17inch
Hard Disk SEAGATE 500G 3.5"
CPU G1610 2.6G
Storage 2GB 1600MHz DDR3 Innodisk
Main board H61 SYM76993VGGA

Compliance
International  * ISO19001 ; ISO14001 ; OHSMS18001 ;
* CE
* USA FDA
* Maximum X-ray leakage of less than 5 μSv/h(0.5mR/h) measured at 5cm from any external surface. (European standard - less than 1 μSv/h(0.1mR/h) measured at 10cm from any external surface)
National (China) * Health Inspection Report
* Computer Software Copyright Registration Certificate
* Software Product Registration Certificate
* Radiation Safety Certificate from Ministry of Public Security
* Quality Certification from Safety and Police Electronic Products Quality Inspection Center
* Design pantent certification: Patent No. : 201020700245.2 ; Patent No. : 201020700245.8 ; Patent No. : 201020700256.0

X Ray Baggage Scanner Security Inspection Machine for Airport/Train Station At6550d


X Ray Baggage Scanner Security Inspection Machine for Airport/Train Station At6550d
X Ray Baggage Scanner Security Inspection Machine for Airport/Train Station At6550d

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

                             X-Ray Baggage Scanner
                                                       Product Index
NO.    Model                                      Remarks
Tunnel Size Generator View Brands of Generator
1 AT 5030C 500*300mme single one self made
2 AT 6040B 600*400mm single one Spellman 160 Kv
3 AT 6550B 650*500mm single one Spellman 160 Kv
4 AT 8065B 800*650mm single one Spellman 160 Kv
5 AT 10080B 1000*800mm single one Spellman 160 Kv
6 AT 10080D 1000*800mm two two self made
7 AT 10080T 1000*800mm three three view / 3D self made
8 AT 100100B 1000*1000mm single one Spellman 160 Kv
9 AT 100150B 1000*1500mm single one Spellman 200 Kv
10 AT 150180B 1500*1800mm single one Spellman 200 Kv
11 AT 2300 Portable and mobile x-ray scanner
Available and customizable models
NO. Model Remarks
Tunnel Size Generator View Brands of Generator
1 AT 100100D 1000*1000mm two two self made
2 AT 100100T 1000*1000mm three three view / 3D self made
3 AT 150100B 1500*1000mm single one Spellman 160 Kv
4 AT 100150D 1000*1500mm two two self made
5 AT 150180D 1500*1800mm two two self made

Our Rockstar Products including Radial Truck Tyre,Radial Bus Tyre, Solid tyre, Forklift tyre, OTR tyre, M/T with

various sizes and patterns available.

The Rockstar tyre has passed the ISO 9001, ISO/TS16949, DOT, ECE, GCC certificaton depends on the superior

product quality.

ROCKSTAR tyres have been exported to North Amereca, South America, Africa, the Middle East and Southeast

Asia.We have done OEM for several well-known brands.

The traction type tyre endows with a good drive power and hold power.
The reasonable pattern tilt angle guarantees a good self-cleaning capacity.

All the TBR Sizes: 7.50R16  8.25R16  8.25R20  9.00R20  10.00R20  11.00R20  11.00R22  12.00R20  12.00R24

11R22.5 12R22.5  13R22.5  11R24.5  295/75R22.5  295/80R22.5  285/75R24.5  315/80R22.5  385/65R22.5

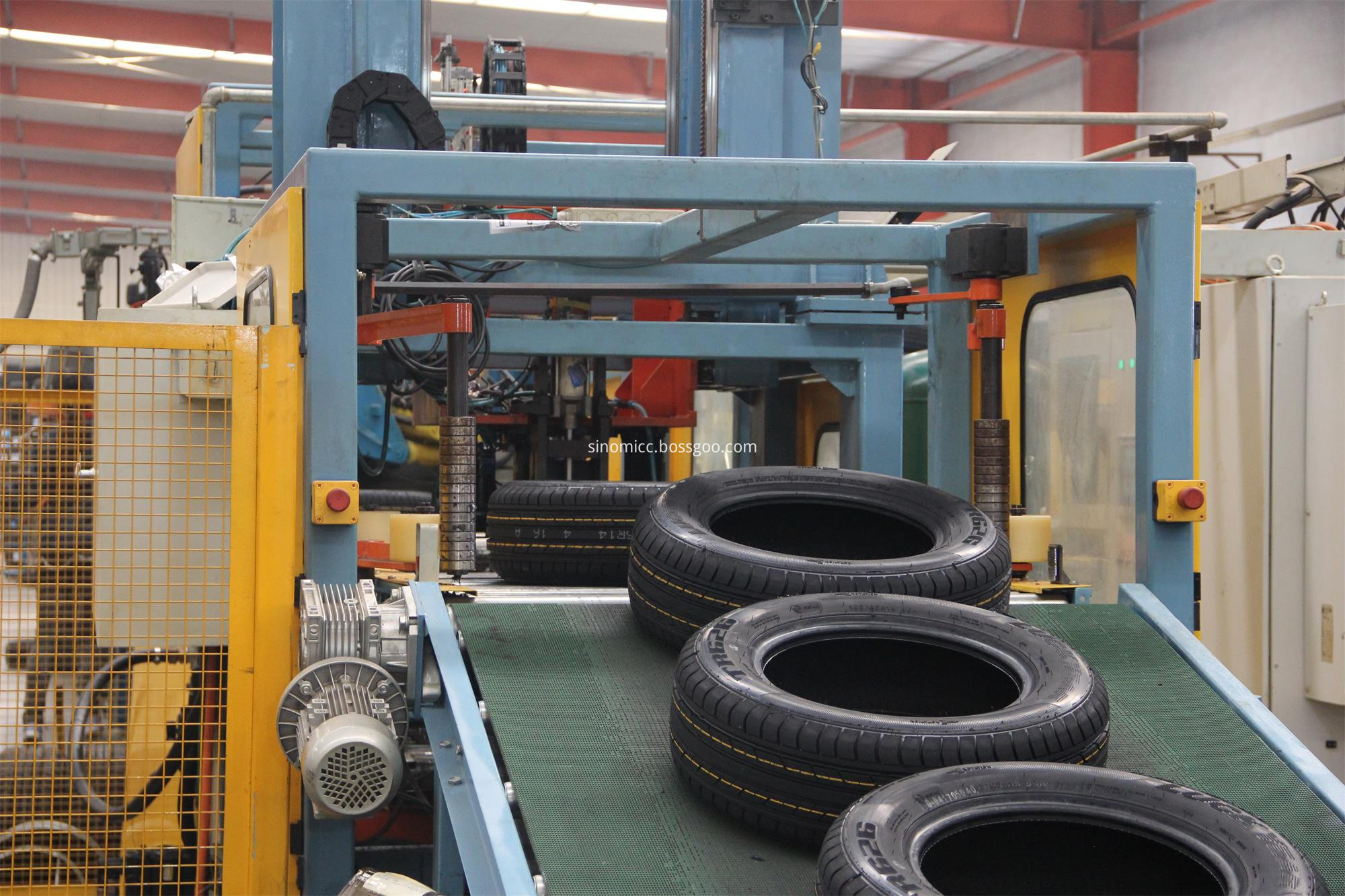

Wokshop Bead Forming MachineTire Static Load Testing Machine
